Amplicon Clustering using edit distance

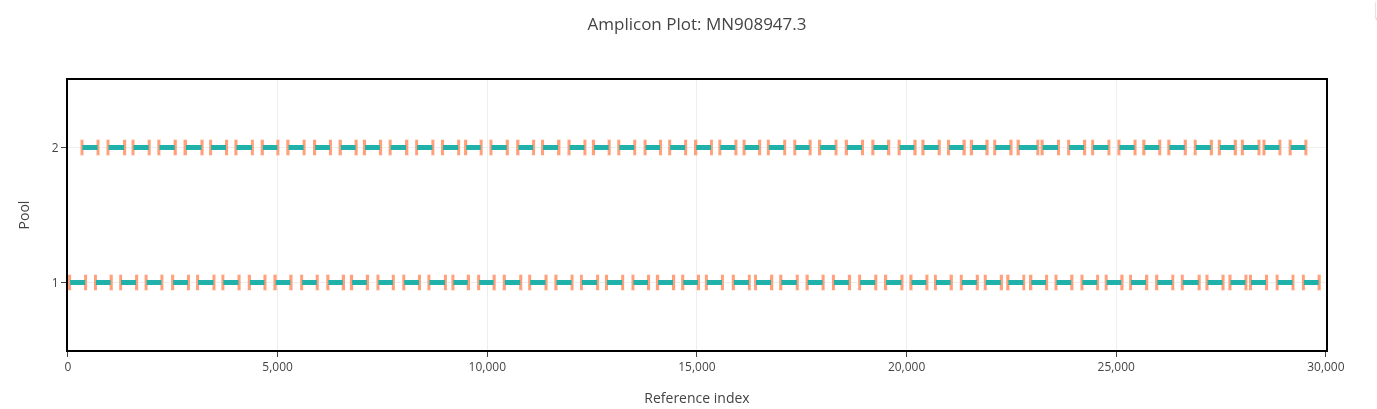

Amplicon clustering is used in the sequencing of viruses. For example, a 30kbp SARs-CoV-2 virus is split into ~100 slightly overlapping amplicons of length around 400:

Each of these amplicons is replicated many times and sequenced using ONT to a coverage of around 1000, where each read covers a full 400bp amplicon, as well as primers at the start (and end?).

The goal is to cluster the 100k 400bp reads (40Mbp of data) into the original 100 amplicons.

Current methods are reference based and map each read to a known reference, but this can introduce bias and has possible issues when the virus being sequenced has diverged too much from the reference.

Here, we will attempt to use edit distance based methods (sassy) for clustering.

Code: github:ragnargrootkoerkamp/amplicon-clustering.

1 Datasets Link to heading

Bede Constantinides and others put together some datasets at https://www.ebi.ac.uk/ena/browser/view/PRJEB50520. We will use two files:

ftp://ftp.sra.ebi.ac.uk/vol1/run/ERR895/ERR8959186/oxf__ont__artic-v4.1__B.reads.fastq.gz: 100k reads of length ~500

ftp://ftp.sra.ebi.ac.uk/vol1/run/ERR895/ERR8959165/oxf__ont__midnight-v2__B.reads.fastq.gz: 55k reads of average length ~600

2 Approach Link to heading

The basic approach is this: for each amplicon we keep a single representative. Then, each read is matched (aligned) against all representatives. Ideally exactly one of those distances is small and the read is assigned to that bucket. If none of the distances is small, we assign it to a new cluster.

In total, this should do around \(100\cdot 100\ 000 = 10M\) pairwise comparisons, which should be pretty fast using either A*PA2 or sassy.

3 Tools Link to heading

3.1 A*PA2 Link to heading

• Does not support overhang
• Really only does global alignment (even in astarpa2::full mode), which isn’t quite good enough.

3.2 pa-bitpacking Link to heading

• has pa_bitpacking::search which simply fills the entire matrix using SIMD.

3.3 Sassy Link to heading

• Has alpha for cheap overhangs
• only does semi-global
• not quite optimized yet for searching short texts
