Sassy 1 & 2: Fuzzy searching DNA using SIMD

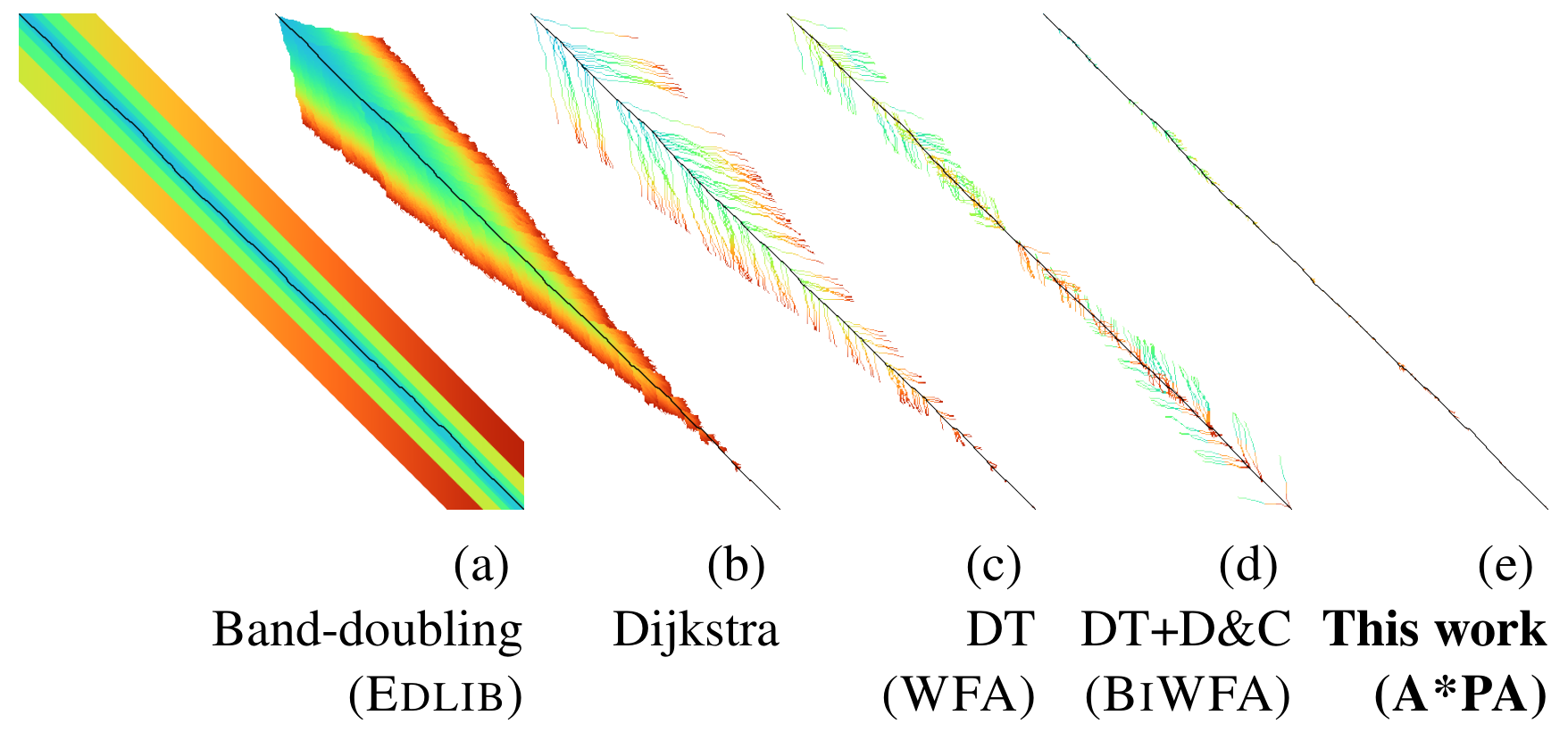

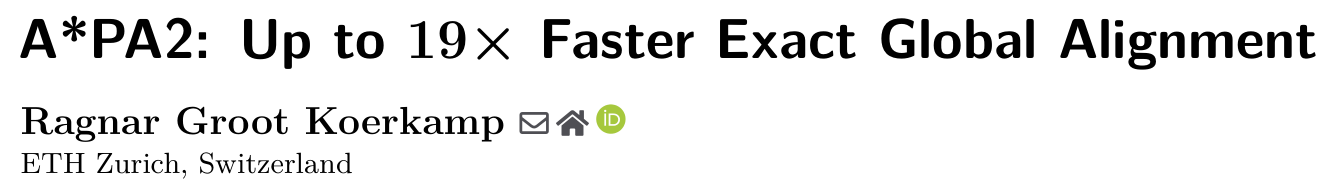

Previously Link to heading

Previously Link to heading

Long-read global alignment is just not a problem people have… Link to heading

… Sassy: 100bp semi-global alignment Link to heading

Takeaway 1: Math yay, Bio nay Link to heading

Takeaway 2: Do simple stuff fast Link to heading

Approximate String Matching Link to heading

• Find pattern \(P\) in text \(T\).
  • \(m := |P|\), \(n := |T|\)
• Allow up to \(k\) unit-cost errors.
• Find all matches.

• IUPAC support: Handle ACTG, N, YR...

• Not semi-global alignment
• Not \(\Theta(nm/w)\)
• Not new: Lots and LOTS of old literature

Intricacies of ASM: What is a “match”? Link to heading

• The end position?
• A start and end position?
• An alignment?

Intricacies of ASM: Which “matches” to report? Link to heading

• The end position?

  • One endpoint? (Semi-global)
  • All endpoints? (Navarro'01)
  • Local minima! (Sassy)

• A start and end position?

  • One pair per endpoint?
  • All pairs?

• An alignment?

  • All alignments?
  • One per endpoint?
  • But which one??????
  • In-progress PR by Fulcrum Genomics:
    iterate over all “reasonable” alignments

ASM is not reverse-complement invariant! Link to heading

Overhang: when \(P\) extends beyond \(T\) Link to heading

ASM in \(O(\lceil n/w\rceil k)\) Link to heading

• Myers’ bitpacking on \(w=64\)-bit blocks.
• “Early break” when all states in block have cost \(>k\), after \(\approx 2k\) rows.
• Horizontal tiling because \(k\ll w\) makes \(O(n \lceil k/w\rceil)\) inefficient.

SIMD: Chunking the text Link to heading

• Split the text in 4 chunks.
• Process 1 chunk per SIMD-lane.
  • The blue blocks are all evaluated at the same time!

Sassy 1: search long text at \({>}1\) Gbp/s Link to heading

• Params:
  • \(20 \leq |P| \leq 1000\), \(n=10^5\)
  • 1 thread, fwd search only
• Results:
  • k=3: 1.1 Gbp/s
  • k=20: 600 Mbp/s
  • 10\(\times\) Edlib, 128\(\times\) parasail

Applications:

CLI: sassy grep -p <pattern> -k 3 <hg>.fa Link to heading

Sassy 2: batching \(\gg\) chunking Link to heading

• Text chunking requires gathering and transposing
• Take pattern suffix of len \(w’\in\{16,32\}\)
  • Random DNA has edit distance \(\approx 45\%\).
  • \(w’>2k+\varepsilon\) ensures few spurious matches.
• One suffix per SIMD lane.
• Post-process if suffix matches with cost \(\leq k\).

Sassy 2: search at 8 Gbp/s Link to heading

• A: 128 patterns of len 23, 1 thread, \(k\in \{0,3,4\}\). B: \(n=10^5\), \(k=3\).

Sassy 2 Application: Crispr off-target & Barbell Link to heading

• Search a 23bp guide RNA in a human genome with \(k=3\) in 30ms or amortized >100 Gbp/s on 16 threads.
  • 3.7\(×\) Sassy1, 35\(×\) Edlib
• Scan Nanopore reads for 96 ONT rapid barcodes with \(k=3\) at 1.2 Gbp/s!
  • 4.6\(×\) Sassy1, 45\(×\) Edlib
• Barbell (Beeloo+) is a fast & accurate demultiplexer using Sassy2.
  • Poster @ RECOMB tomorrow evening!
