Rank & Select

Advanced Data Structures – Summer 2026 – Lecture 2

Ragnar {Groot Koerkamp}, Stefan Walzer, Stefan Hermann

2026-04-27 Mon 14:00

curiouscoding.nl/teaching

Last week: Models of computation

Big-O notation
Word RAM model
- Applications & limitations

Today

Bit vectors
- storing bits
Rank
- counting 1-bits
Select
- finding 1-bits
Engineering Rank
- making it fast
Elias-Fano coding
- storing integers efficiently

Bit vectors

Definition 1.

A static bit vector is an implicit data structure storing \(n\) bits \(b_0, \dots, b_{n-1}\) with constant overhead.

\(\mathsf{get}(i)\): returns \(i\)'th bit \(b_i\)

Implemented using e.g. Vec<u64>.

fn get(data: &Vec<u64>, i: usize) -> bool {
    let word = data[i / 64];         // compiled to >> 6
    let idx = i % 64;                // compiled to & 0b0011_1111
    return ((word >> idx) & 1) > 0;
}

Little Endian: the low-order bits are first in memory.

\[ \newcommand{\rank}{\mathsf{rank}} \newcommand{\select}{\mathsf{select}} \]

Binary Rank & Select

Definition 2.

A rank query on a bit vector counts 1-bits before a position \(i\) (for \(0\leq i\leq n\)).

\(\rank(i) := \sum_{0\leq j < i} b_j\)

Definition 3.

A select query on a bit vector returns the position of the \(j\)'th 1 (zero-based, for \(0\leq j < \rank(n)\)).

\(\select(j) :=\) index \(i\) such that \(b_i=1\) and \(\rank(i) = j\).

Also: \(\rank_0\) and \(\select_0\) for counting/finding 0-bits.

Question 1.

What is \(\rank_1(\select_1(j))\)?

And \(\select_1(\rank_1(i))\)?

Binary Rank & Select

Answer 1.

\(\rank_1(\select_1(j))\) equals \(j\).

\(\select_1(\rank_1(i))\) finds the position of the first 1 at position \(\geq i\).

Binary Rank & Select: Goal

Theorem 1 Goal of this lecture.

There exists a data structure that answers rank and select queries:

in constant \(O(1)\) time,
using succinct \(o(n)\) bits of additional space.

Rank: first steps

Example 1 Compute everything.

Compute the answer on-demand:

No space overhead
\(O(n/\log n)\) query time
- We pop-count \(w=\Theta(\log n)\) bits at a time.

Example 2 Store everything.

Pre-compute and store all answers:

\(n\) words overhead
\(O(1)\) query time

Rank: Binary search

Example 3.

Store positions of all 1-bits. Then binary search to get the number of them at position \(\lt i\):

\(k\) words overhead, for \(k := \rank(n)\).
\(O(\log k)\) query time

Rank: Checkpoints

Example 4.

Store a checkpoint every \(s\) bits: \(R_k := \rank(k\cdot s)\).

\(n/s\) words overhead
\(O(s/\log n)\) query time: \[\rank(i) = R_{\lfloor\frac is\rfloor} + \sum_{s\lfloor\frac is\rfloor \leq j < i} b_j\]

For \(s=w = \Theta(\log n)\):

\(n/w\) words, or \(n\) bits overhead.
- Compact, but not succinct
\(O(1)\) queries

Adjacent checkpoints \(R_k\) are similar!

Rank: A succinct version (Jacobson 1988)

Definition 4 Succinct rank.

Blocks of size \(s = w\).
Super blocks of size \(s' = w^2\).

Store \(w\)-bit super block ranks \(R'_k := \rank(k\cdot s')\).
- \(\lceil n/s'\rceil \cdot w = O(n/\log n) = o(n)\) bits

Store \(\log_2 s'\)-bit block ranks relative to super block: \[R_k = \rank(k\cdot s) - R'_{\lfloor k/w\rfloor} \leq s'.\]
- \(\lceil n/s\rceil \cdot \log_2(s') = O(n/w \cdot \log_2 w) = o(n)\) bits

Constant time queries: \[\rank(i) = R'_{\lfloor i/s'\rfloor} + R_{\lfloor{i/s\rfloor}} + \sum_{s\lfloor\frac is\rfloor \leq j < i} b_j\]

Rank: Emulating popcount

Originally, constant time \(w\)-bit popcount was not assumed.

Instead, we can take \(s = (\log_2 n)/2\), and pre-compute popcounts for all \(2^s\) masks:
- \(2^s = \sqrt{n}\) patterns
- \(s\) offsets per pattern
- \(\log_2 s\) bits per count
\[2^s \cdot s \cdot \log_2 s = O(\sqrt n \cdot \log_2 n \cdot \log_2\log_2 n) = o(n).\]

Engineering Rank: minimizing space usage

In practice, we don't need succinct. Compact with small constant overhead is enough. See QuadRank slides.

\(s=512\): Store a 64-bit checkpoint every 512-bits of data:
- \(64/512 = 12.5\%\) space overhead;
- pop-counting 512 bits is sufficiently fast.

Smaller, \(s'=2^{16}\): 16-bit checkpoints, and \(s'=2^{16}\)-bit super blocks storing 64-bit checkpoints. (Kurpicz 2022)
- \(16/512 + 64/2^{16} = 3.2\%\) overhead.

Faster count: checkpoints to the middle of each block: (Gottlieb and Reinert 2025)
- popcount only 256 bits.

Fewer cache misses: store checkpoints inside each block: (Laws et al. 2024)
- 1 instead of 2 cache misses
- \(16/(512-16) + 64/2^{16} = 3.3\%\) overhead.

Simple & fast classic: Rank 9 (Vigna 2008)
- 64-bit blocks with 9-bit checkpoints; 7 of them make a u64.

Select

Assume we have \(k\) 1-bits.

Compute all answers on-demand: \(O(n/\log n)\) queries.
Store all answers: \(O(k)\) words.
- Sufficient if \(k = o(n / \log n)\).

Definition 5 Select in word.

The position of \(i\)'th 1-bit in a word can be found in constant time (in the "modern" word RAM model) using

(1 << i).deposit_bits(word).trailing_zeros()

which uses pdep and tzcnt instructions (wikipedia, deposit_bits).

Succinct Select (Clark and Munro 1996)

Definition 6 Clark's select.

Variable-sized super-blocks \(B_i\) containing \(b:=\log ^2 n\) 1-bits \[\select(i) = \left(\sum_{0\leq j < \lfloor i/b\rfloor} |B_j|\right) + \select(B_{\lfloor i/b\rfloor}, i - b\lfloor i/b\rfloor).\]
- Prefix sums take \(n/b \cdot w = O(n/\log n) = o(n)\) bits.
Sparse blocks with \(|B| \geq \log^4 n\):
- Store answers directly in \(bw = \Theta(\log^3n)\) bits.
- \(\log^4\) bits in block, so \(o(n)\) overall.
Dense blocks with \(|B| < \log^4 n\): next slide

Succinct Select (Clark and Munro 1996)

Definition 7 (Clark's select ctd.) handling dense blocks.

Dense blocks with \(|B| < \log^4 n\):

Split again into variable-sized blocks of \(b'=\sqrt{\log n}\) ones.

Prefix sums take \(\log \log^4 n\) bits per element, \(O(k/b' \cdot \log \log^4 n) = o(n)\) total

If sparse, size \(\geq \frac 12\log n\):
- Store \(b'\) \(\log_2(\log^4 n)\)-bit numbers, \(o(\log n)\) total
If dense, size \(<\frac 12\log n\):
- Use select_in_word
- Clark's select stores a lookup table like for popcount.

Succinct Select (Clark and Munro 1996)

Definition 8 (Clark's select ctd.) queries.

To answer \(\select(j)\):

Find the super block \(\lfloor j/b\rfloor\).
If sparse: read answer.
If dense: find block \(\lfloor j/b' \rfloor\).
- Read offset of superblock.
- Read offset of block inside superblock.
- If sparse block: read the position relative to the block.
- If dense block: popcount inside the block.

Theorem 2.

There exists a data structure with \(o(n)\) space overhead that allows \(O(1)\) rank and select queries.

Select in practice: Darray

Super blocks containing \(b = 2^{10}\) ones.
Sparse if length \(\geq 2^{16}\)
- Use \(2^6=64\) bits to encode each position; \(64\cdot 2^{10} = 2^{16}\) bits

Dense blocks (len \(<2^{16}\)):
- Store position of every \(2^5=32\)'nd 1, relative to start (10 bits each).
- Linear scan (\(<2^{16}\)) from there to find the exact answer.
- The last sparse/dense split from Clark's select (previous slide) is skipped.

Next: Elias-Fano coding

Bibliography

Clark, David R, and J Ian Munro. 1996. “Efficient Suffix Trees on Secondary Storage.” In Proceedings of the Seventh Annual Acm-Siam Symposium on Discrete Algorithms, 383–91.

Gottlieb, Simon Gene, and Knut Reinert. 2025. “Engineering Rank Queries on Bit Vectors and Strings.” Algorithms for Molecular Biology 20 (1). https://doi.org/10.1186/s13015-025-00291-9.

Groot Koerkamp, Ragnar. 2026. “Quadrank: Engineering a High Throughput Rank.” arXiv. https://doi.org/10.48550/ARXIV.2602.04103.

Jacobson, Guy Joseph. 1988. “Succinct Static Data Structures.” Carnegie Mellon University.

Kurpicz, Florian. 2022. “Engineering Compact Data Structures for Rank and Select Queries on Bit Vectors.” In SPIRE 2022, 257–72. Springer International Publishing. https://doi.org/10.1007/978-3-031-20643-6_19.

Laws, Matthew D., Jocelyn Bliven, Kit Conklin, Elyes Laalai, Samuel McCauley, and Zach S. Sturdevant. 2024. “Spider: Improved Succinct Rank and Select Performance.” In SEA 2024, 301:21:1–21:18. Schloss Dagstuhl – Leibniz-Zentrum für Informatik. https://doi.org/10.4230/LIPICS.SEA.2024.21.

Vigna, Sebastiano. 2008. “Broadword Implementation of Rank/Select Queries.” In WEA 2008, edited by Catherine C. McGeoch, 154–68. Berlin, Heidelberg: Springer Berlin Heidelberg. https://doi.org/10.1007/978-3-540-68552-4_12.

Possible exam questions

What does a rank query return? And select? How do they relate to each other?
What is the main technique used to obtain a succinct rank data structure? And for select?
Name a few ways in which practical rank methods differ from the Jacobson's theoretical version.
How does Darray differ from Clark's select?
Which modern CPU instructions can be used for rank and/or select? What older techniques do they replace?
For both rank and select, why does a single layer of blocks not suffice to obtain \(o(n)\) space and \(O(1)\) query time?

Rank & Select

Ragnar {Groot Koerkamp}, Stefan Walzer, Stefan Hermann

2026-04-27 Mon 14:00

Last week: Models of computation

Today

Bit vectors

Bit vectors

Binary Rank & Select

Binary Rank & Select

Binary Rank & Select

Binary Rank & Select: Goal

Rank: first steps

Rank: Binary search

Rank: Checkpoints

Rank: A succinct version (Jacobson 1988)

Rank: Emulating popcount

Engineering Rank: minimizing space usage

Select

Select

Succinct Select (Clark and Munro 1996)

Succinct Select (Clark and Munro 1996)

Succinct Select (Clark and Munro 1996)

Select in practice: Darray

Further reading

Next: Elias-Fano coding

Bibliography

Possible exam questions

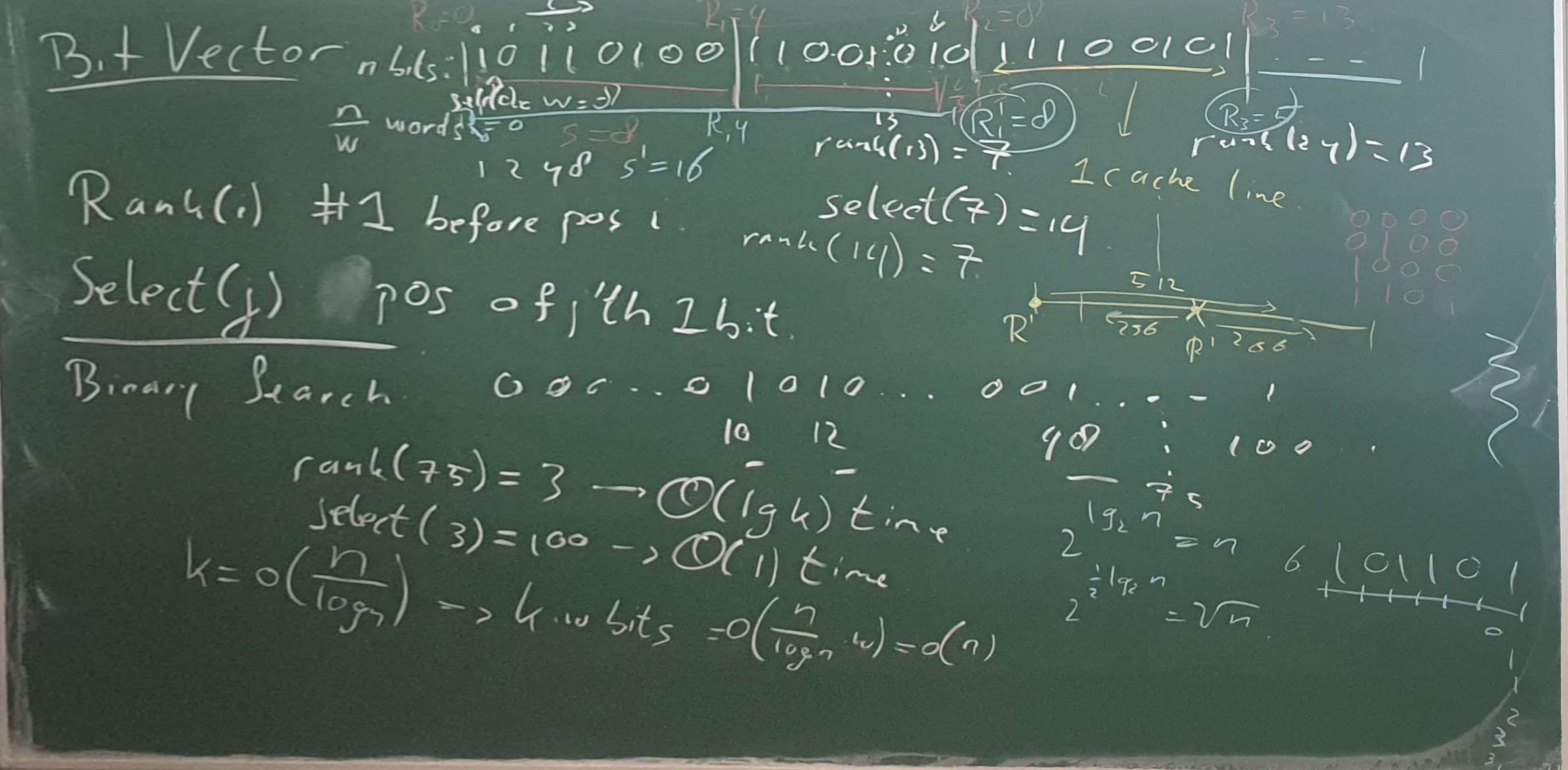

Blackboard: Bit vector & Rank

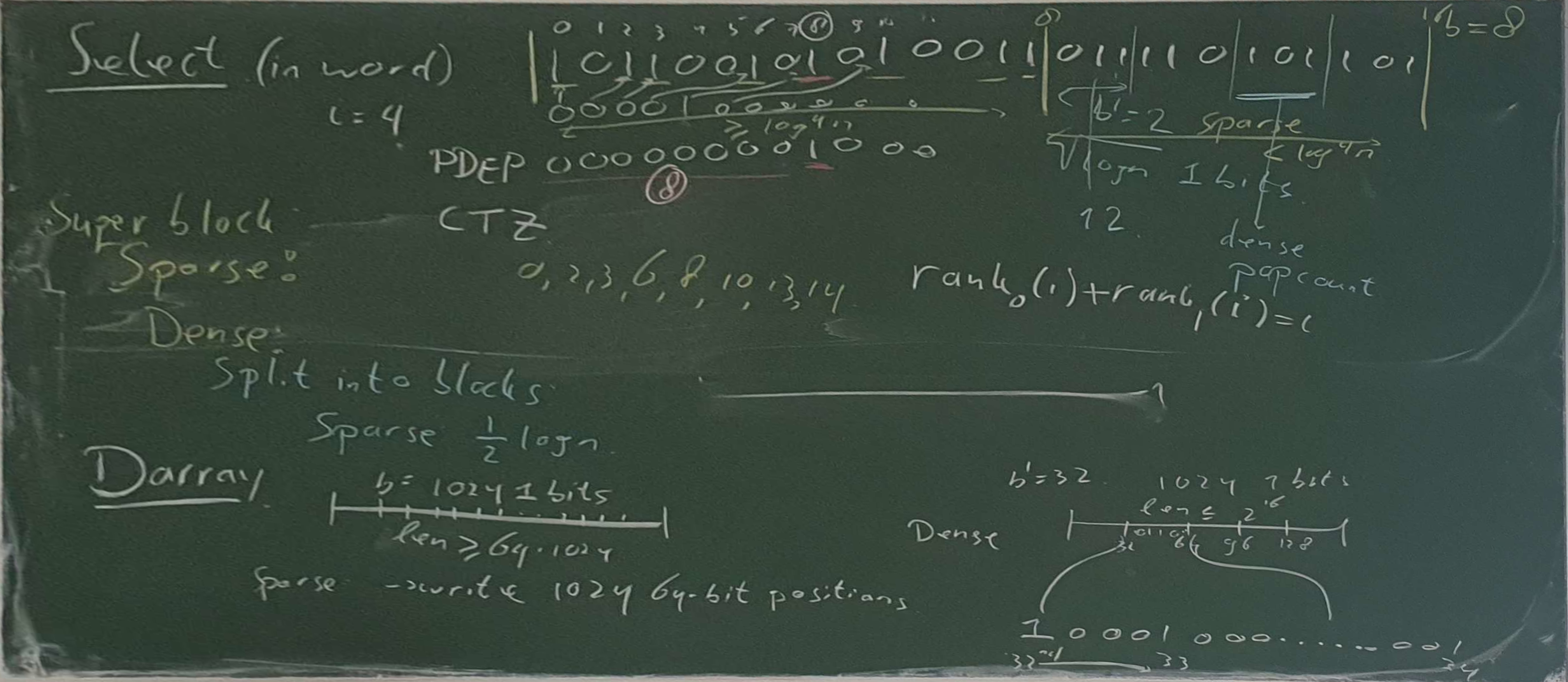

Blackboard: Select & Darray
